Threaded Rod DIN 975 - 1986 Threaded Rod.
Made of superior carbon steel or superior alloy steel.
Sizes are available in standard as well as customized according to drawing or detailed requirements.
| Technical Notes | Conform to DIN 975 |
| Material | Superior Carbon Steel / Alloy Steel |
| Processing | Machining |
| Surface Finished | Electric Galvanized / Hot Dipped Galvanized / Yellow Zinc Plated |
| Packing | Carton / Plywood pallet / Metal pallet / Wooden box |
| Tips | Can customize according to drawing or detailed requirements. |
| Origin | China |

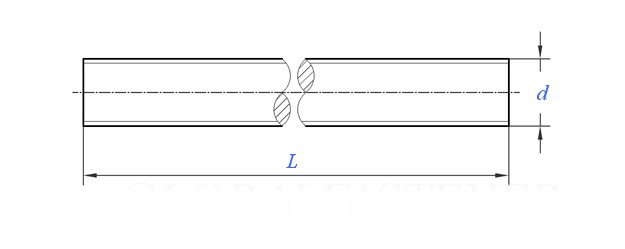

| Unit (MM) | ||||||||||||||||||||||||||
| Thread Size d | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | |
| P | Coarse Thread Pitch | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Fine Thread Pitch | / | / | / | / | / | / | / | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | |
| L | ±10 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| WT(KG/100PCS) | 1.87 | 3 | 4.4 | 6 | 7.8 | 12.4 | 17.7 | 31.9 | 50 | 72.5 | 97 | 133 | 165 | 208 | 254 | 300 | 385 | 475 | 590 | 690 | 820 | 940 | 1100 | 1240 | 1470 | |
