Welded Master Link Pear Shaped.
Made of superior mild steel, it is an important component of crane hooks, as well as multi-legged wire rope bridle slings, alloy chain slings and web sling bridles.
It can apply to stand alone rigging accessories and can also apply to rigging configurations as needed.
| Material | Superior Mild Steel |
| Safety Factor | 5 : 1 |
| Processing | Welded |
| Surface Finished | Powder Coated |
| W.L.L. | 1T , 0.8T , 1.8T , 3T , 4.1T , 5.1T , 7.2T |
| Tips | Can customize according to detailed requirements. |

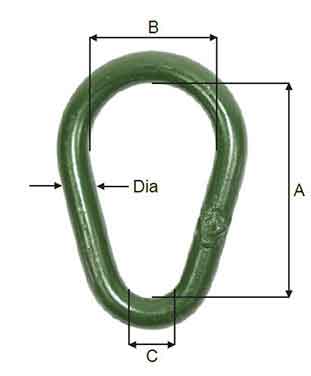

| Dia. (mm) | WLL (5:1, ton) | A (mm) | B (mm) | C (mm) | Weight (kg) |
| 12 | 1 | 70 | 35 | 15 | 0.22 |
| 12 | 0.8 | 125 | 65 | 24 | 0.33 |
| 16 | 1.8 | 110 | 60 | 28 | 0.5 |
| 19 | 3 | 120 | 70 | 36 | 0.8 |
| 22 | 4.1 | 130 | 85 | 45 | 1.4 |
| 25 | 5.1 | 160 | 100 | 45 | 2.2 |
| 30 | 7.2 | 160 | 100 | 45 | 3 |
