Stainless Steel Welded Oblong Master Link.
Stainless Steel Oblong Master Link is made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
It is widely used for rigging & lifting applications, including overhead lifting.
| Material | Stainless Steel AISI 316 or AISI 304 |
| Safety Factor | 5:1 |
| Processing | Welded |
| Surface Finished | Highly Polishing |
| WLL | 1T , 1.7T , 3.2T , 4.6T , 5.8T , 4T , 7.3T , 10T , 7.5T , 12.7T , 13.5T , 15T |

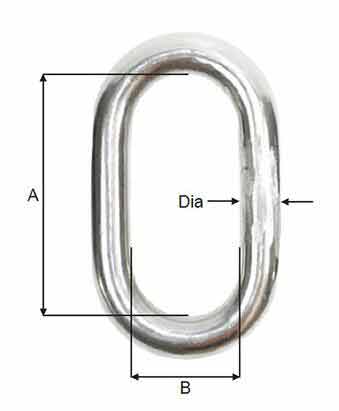

| Dia (mm) | WLL (5:1/ton) | A (mm) | B (mm) | Weight (kg) |
| 12 | 1 | 70 | 30 | 0.2 |
| 16 | 1.7 | 85 | 35 | 0.4 |
| 19 | 3.2 | 110 | 45 | 0.7 |
| 22 | 4.6 | 120 | 50 | 1.1 |
| 25 | 5.8 | 130 | 50 | 1.5 |
| 25 | 4 | 150 | 80 | 2.5 |
| 28 | 7.3 | 150 | 60 | 2.1 |
| 30 | 10 | 150 | 60 | 2.5 |
| 30 | 7.5 | 150 | 80 | 2.76 |
| 32 | 12.7 | 150 | 60 | 2.8 |
| 35 | 13.5 | 160 | 75 | 3.2 |
| 38 | 15 | 150 | 60 | 4.2 |
