Stainless Steel Screw Pin D Shackle JIS Type.
This type shackle is made of Stainless steel 316 or 304 which has superb rust/corrosion resistant performance.
The screw pin allows for easy attachment and detachment and with a hole in the pin of the D shackle, it allows for the shackle to be wired shut.
Stainless steel screw pin D shackle JIS type is widely used in a variety of fields such as industrial, agricultural and marine applications.
Sizes available from 4mm to 38mm.
| Technical Notes | Conform to JIS standard |
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Forged / Casting / Stamping |
| Surface Finished | Highly Polishing |
| Size | 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 32mm, 36mm, 38mm |
| Origin | China |

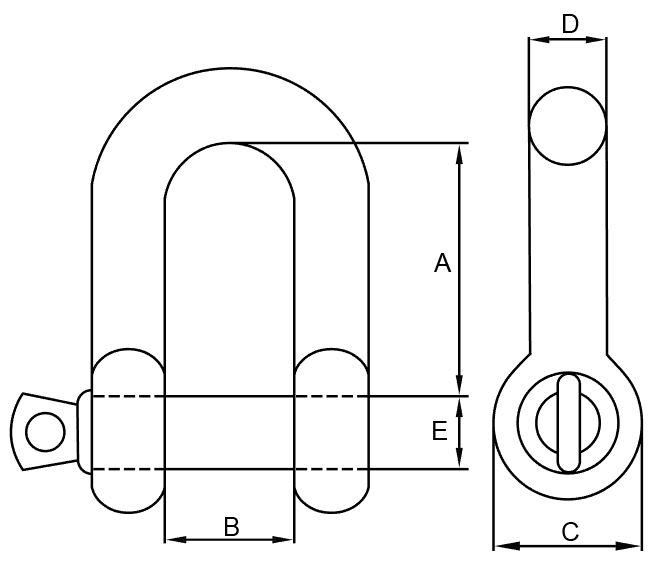

| Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | WLL (KGS) |
| 4mm | 14 | 8 | 8 | 4 | 4 | 50 |
| 5mm | 16 | 10 | 10 | 5 | 5 | 80 |
| 6mm | 22 | 12 | 12 | 6 | 6 | 100 |
| 8mm | 27 | 16 | 16 | 8 | 8 | 200 |
| 10mm | 31 | 20 | 20 | 10 | 10 | 320 |
| 12mm | 40 | 24 | 24 | 12 | 12 | 520 |
| 14mm | 46 | 28 | 28 | 14 | 14 | 700 |
| 16mm | 52 | 32 | 32 | 16 | 16 | 800 |
| 18mm | 58 | 36 | 36 | 18 | 18 | 990 |
| 20mm | 64 | 40 | 40 | 20 | 20 | 1100 |
| 22mm | 75 | 44 | 44 | 22 | 22 | 1500 |
| 25mm | 83 | 50 | 50 | 25 | 25 | 2100 |
| 28mm | 96 | 56 | 56 | 28 | 28 | 3000 |
| 32mm | 114 | 64 | 64 | 32 | 32 | 3500 |
| 36mm | 116 | 72 | 72 | 36 | 36 | 4600 |
| 38mm | 152 | 76 | 76 | 38 | 38 | 5000 |
