Stainless Steel Turnbuckle Hook & Eye US Type.
Turnbuckle Hook & Eye is a common type of rigging hardware in the marine rigging industry.
The precision cast eye & hook turnbuckle is a valuable item in rigging for its quick connect/disconnect properties.
Stainless Steel Turnbuckle Hook & Eye US Type supplys tension by adjusting the length for supporting ropes, wire ropes, cables and chains .
A full line of type available including Jaw & Jaw, Hook & Hook, Eye & Eye etc. in various sizes from small turnbuckle to big turnbuckle.
*Straight or in-line pull only.
| Technical Notes | Conform to US Federal Specification |
| Material | Stainless Steel (AISI 316 / AISI 304) |
| Size | 1/4×4” , 5/16×4.5” , 3/8×6” , 1/2×6” , 1/2×9” , 1/2×12” , 5/8×6” , 5/8×9” , 5/8×12” , 3/4×6” , 3/4×9” , 3/4×12” |
| Processing | Cast / Forged |
| Surface Finished | Highly Polishing |
| Tips | Rust/corrosion resistant,Straight or in-line pull only |

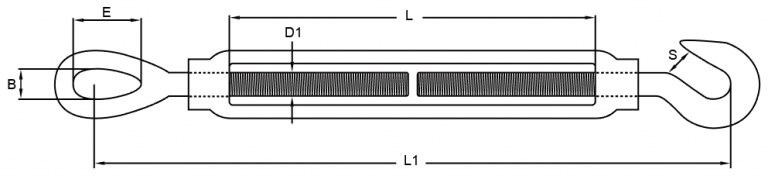

| Size | L | L1 | S | B | E |
| (inch) | |||||
| 1/4″ | 4 | 7.43 | 0.37 | 0.32 | 0.78 |
| 5/16″ | 4.5 | 8.24 | 0.4 | 0.43 | 0.94 |
| 3/8″ | 6 | 10.63 | 0.48 | 0.51 | 1.12 |
| 1/2″ | 6 | 11.55 | 0.55 | 0.71 | 1.44 |
| 1/2″ | 9 | 14.55 | 0.55 | 0.71 | 1.44 |
| 1/2″ | 12 | 17.55 | 0.55 | 0.71 | 1.44 |
| 5/8″ | 6 | 12.77 | 0.74 | 0.87 | 1.75 |
| 5/8″ | 9 | 15.77 | 0.74 | 0.87 | 1.75 |
| 5/8″ | 12 | 18.77 | 0.74 | 0.87 | 1.75 |
| 3/4″ | 6 | 14.19 | 0.9 | 0.99 | 2.09 |
| 3/4″ | 9 | 17.19 | 0.9 | 0.99 | 2.09 |
| 3/4″ | 12 | 20.19 | 0.9 | 0.99 | 2.09 |
