Stainless Steel Lifting Eye Nut JIS 1169 UNC.
JIS 1169 is made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
This lifting eye nut is suitable for marine, boating and industrial applications.
Sizes are available from 6mm to 24mm.
*Not suitable for overhead lifting or suspension.
| Technical Notes | Conform To JIS 1169 Standard |
| Material | Stainless Steel AISI 316 / AISI 304 |
| Processing | Precision Cast |
| Surface Finished | Highly Polishing |
| Size | 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1" |
| Tips | Not to be used for overhead lifting |

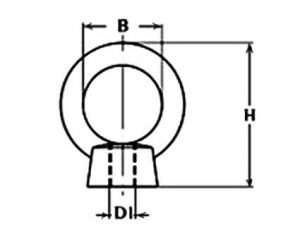

| D1 (in) | B (in) | H (in) |
| 1/4″ | 0,59 | 1.14″ |
| 5/16” | 0.79 | 1.52″ |
| 3/8″ | 0,98 | 1.87″ |
| 1/2″ | 1.18 | 2.36″ |
| 5/8” | 1.38 | 2.76″ |
| 3/4″ | 1.57 | 3.35″ |
| 7/8” | 1,97 | 4.17″ |
| 1″ | 1.97 | 4.17″ |
