Eye Slip Hook with Latch Grade 70.
Grade 70 Eye Slip Hook w/Latch is made of superior alloy steel.
Eye hook features a simple circular attachment point for rigging chain or other attachment.
This type hook is widely used in towing, pulling and securing applications.
* It is not recommended for overhead lifting.
| Technical Notes | Conform to U.S. Fed. Spec. |
| Material | Super Alloy Steel |
| Safety Factor | 4:1 |
| Processing | Body: Drop Forged / Quenched and Tempered Latch: Stamping |
| Surface Finished | Body: Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color Latch: Electric Galvanized / Stainless steel |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ |
| Tips | Customized according to customer's requirements |

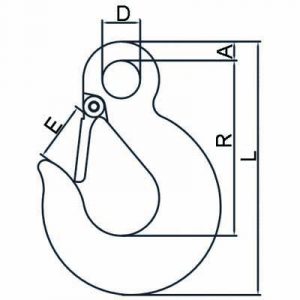

| Size (in) | WEIGHT (lbs) | WLL (lbs) | A±0.3(mm) | D±0.5(mm) | R±1(mm) | E±1(mm) | L±1(mm) |
| 1/4″ | 0.22 | 3150 | 8.5 | 13 | 65.5 | 18.5 | 93 |
| 5/16″ | 0.3 | 4700 | 9 | 16 | 74 | 24.5 | 107 |
| 3/8″ | 0.67 | 6600 | 10.25 | 18 | 86.5 | 32.5 | 123.8 |
| 7/16″ | 0.71 | 8750 | 12.7 | 20.6 | 98.8 | 32 | 142.5 |
| 1/2″ | 0.95 | 11300 | 14.5 | 23 | 109.5 | 41.5 | 156 |
