Lifting Eye Nut DIN582.
DIN582 Lifting eye nut can be used individually or alongside various types of lifting gear in almost any kind of environment.
Lifting Eye Nut & Bolt are designed to provide a lifting point to attach a hook or rope prior to lifting heavy objects.
| Technical Notes | Conform to DIN582 |
| Material | Superior Mild Steel |
| Processing | Drop Forged |
| Surface Finished | Zinc plated, Hot dipped galvanized, Self-color |
| Size | M6 , M8 , M10 , M12 , M14 , M16 , M20 , M22 , M24 , M27 , M30 , M33 , M36 , M39 , M42 , M45 , M48 , M52 , M56 , M64 |
| Note | Never to be used for overhead lifting |

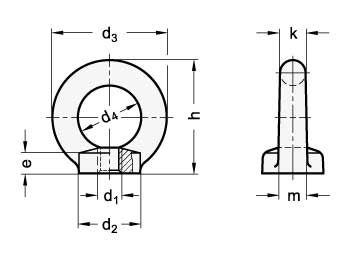

| d1 | d2 | d3 | d4 | e | h | k | SWL | Weight Each |
| MM | KG | |||||||
| M6 | 20 | 36 | 20 | 8.5 | 36 | 8 | 70 | 0.05 |
| M8 | 20 | 36 | 20 | 8,5 | 36 | 8 | 140 | 0.05 |
| M10 | 25 | 45 | 25 | 10 | 45 | 10 | 230 | 0.09 |
| M12 | 30 | 54 | 30 | 11 | 53 | 12 | 340 | 0.15 |
| M14 | 35 | 63 | 35 | 13 | 62 | 14 | 490 | 0.24 |
| M16 | 35 | 63 | 35 | 13 | 62 | 14 | 700 | 0.24 |
| M20 | 40 | 72 | 40 | 16 | 71 | 16 | 1200 | 0.36 |
| M22 | 45 | 81 | 45 | 18 | 81 | 18 | 1500 | 0.58 |
| M24 | 50 | 90 | 50 | 20 | 90 | 20 | 1800 | 0.72 |
| M27 | 50 | 90 | 50 | 20 | 90 | 20 | 2500 | 0.72 |
| M30 | 65 | 108 | 60 | 25 | 109 | 24 | 3200 | 1.32 |
| M33 | 65 | 108 | 60 | 25 | 109 | 24 | 4300 | 1.32 |
| M36 | 75 | 126 | 70 | 30 | 128 | 28 | 4600 | 2.08 |
| M39 | 75 | 126 | 70 | 30 | 128 | 28 | 6100 | 2.08 |
| M42 | 85 | 144 | 80 | 35 | 147 | 32 | 6300 | 3.11 |
| M45 | 85 | 144 | 80 | 35 | 147 | 32 | 8000 | 3.04 |
| M48 | 100 | 166 | 90 | 40 | 168 | 38 | 8600 | 5.02 |
| M52 | 100 | 166 | 90 | 40 | 168 | 38 | 9900 | 5.02 |
| M56 | 110 | 184 | 100 | 45 | 187 | 42 | 11500 | 6.69 |
| M64 | 120 | 206 | 110 | 50 | 208 | 48 | 16000 | 9.3 |
